The relay expander is designed to increase the number of relay outputs of the RR-701R, RR-701R20 and RS-200PN receivers.

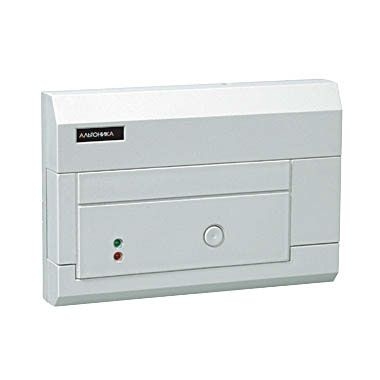

The RR-701X-RL expansion module (hereinafter referred to as the expander) is designed to increase the number of relay outputs of the RR-701R , RR-701R20, RS-201R, RS-201RS and RS-200PN, RS-201PN, RS-202PN receivers.
ATTENTION! The expander can only be used with modifications of the specified receivers that have a special data output!
The expander has 10 switching relays and allows you to create a separate wired dry contact zone for each transmitter (for each RS-201RS zone). Two expanders can be connected to the RR-701R20 receiver, which gives a total of 20 zones. The expander outputs can be connected to alarm loops of security and fire alarm devices (panels) or to control circuits of various equipment (gates, video cameras, lighting, etc.).
Technical Specifications:
- Information capacity: 10 relays, switching contacts Number of transmitters per relay: 1 or 2
- Relay Output parameters:
- The maximum voltage is 72 V at a current of up to 100 mA
- Maximum current is 2 A at a voltage of 12 V
- Supply voltage: 10V to 15V/li> <lt;li>Consumption current:
- no more than 50 mA with all relays switched off
- no more than 400 mA with all relays switched on
- Operating temperature range: -20 to +50°C
- Overall dimensions: 160x110x32 mm
