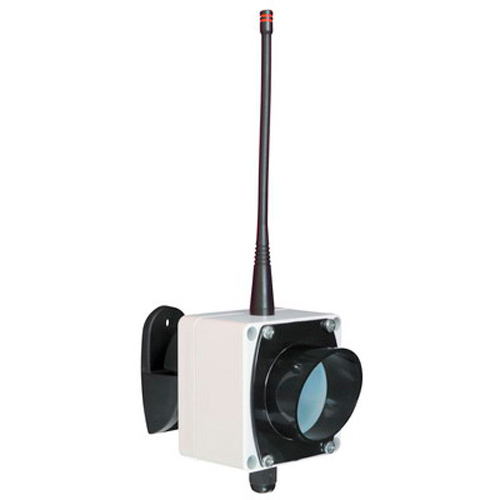

Self-contained (up to 7 years of operation from a single power source) with a radio channel of 433.92 MHz (transmission range of 7,500 meters) digital passive infrared detector "SPLAV L50RA Braslet" with a linear zone length of 50 meters (30 meters in outdoor conditions) and the height/width of the zone at maximum the distance is 2x3 meters. It is intended for the organization of a mobile or stationary perimeter security line with a length of up to 50 meters.
Autonomous security detectors of the FMC Bracelet complex
- linear infrared up to 50m
- self-contained, up to 7 years old
- transmission of signals via a radio channel up to 7,500 m
- included in the FCMA SPLAV Braslet

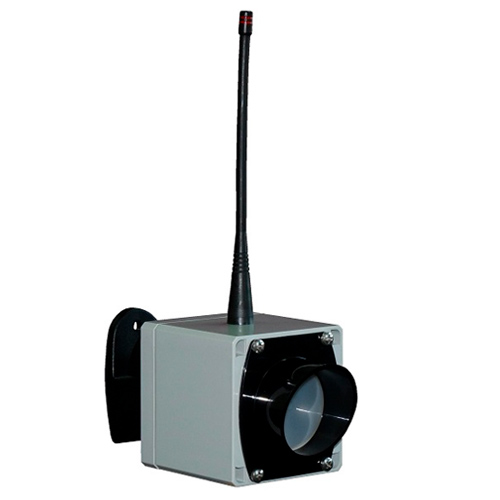

Self-contained (up to 7 years of operation from a single power source) with a radio channel of 433.92 MHz (transmission range of 7,500 meters) digital passive infrared detector "SPLAV L70RA Braslet" with a linear zone length of 70 meters (50 meters in outdoor conditions) and height/width The maximum distance zones are 2x3 meters. It is intended for the organization of a mobile or stationary perimeter security line. There are three mounting options – a stationary bracket, a tripod, and a "clothespin" type bracket.
- linear infrared up to 70m
- self-contained, up to 7 years old
- transmission of signals via a radio channel up to 7,500 m
- included in the FCMA SPLAV Braslet

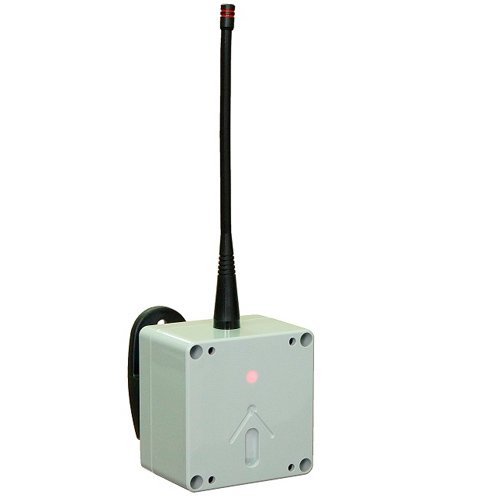

Digital autonomous (up to 7 years of operation from a single power source) optoelectronic passive infrared single-position detector with a volumetric zone "SPLAV V10RA Braslet" is designed to protect areas of territories, objects both outdoors and indoors by issuing an alarm notification via radio channel 433,92 MHz (transmission range 7,500 meters) when an intruder crosses a volumetric detection zone with an opening of 30 degrees vertically and 90 degrees horizontally with a range of up to 10 meters at speeds from 0.1 to 5 m/s.
- three-dimensional infrared
- stand-alone, radio channel
- transmission of signals via a radio channel up to 7,500 m
- included in the FCMA SPLAV Braslet

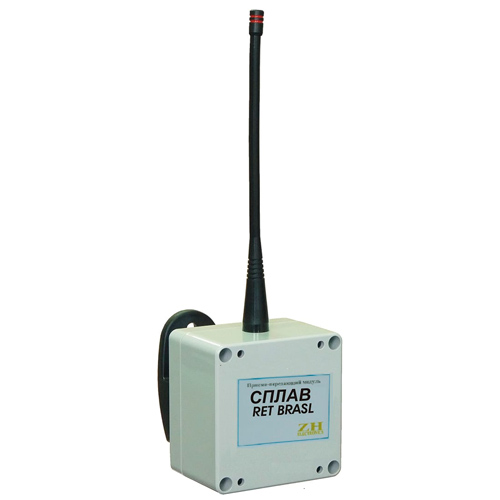

The autonomous street repeater "SPLAV RET Braslet" is designed to receive alarm messages from detectorsSPLAV L50RA Braslet, SPLAV L70RA Braslet, V10RA Braslet SPLAV, and transmission to receiver "Braslet R" as part of a fast-turning mobile complex SPLAV "Braslet".
- included in the FCMA SPLAV Braslet

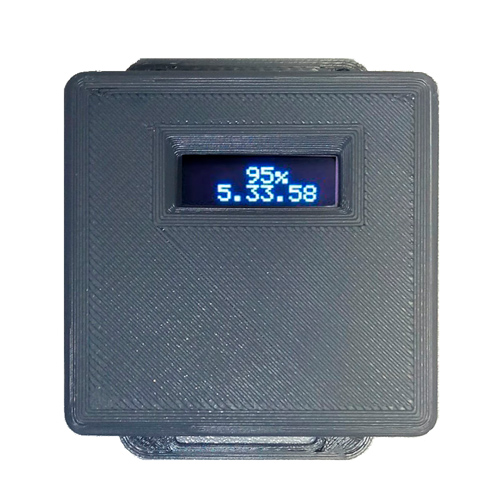

The autonomous (up to 10 days without recharging) Braslet R wristband receiver receives alarm and service messages from 10 detectors (433.92 MHz, distance up to 7,500 m). It controls the on/off of the detectors in a targeted manner.
- included in the FCMA SPLAV Braslet

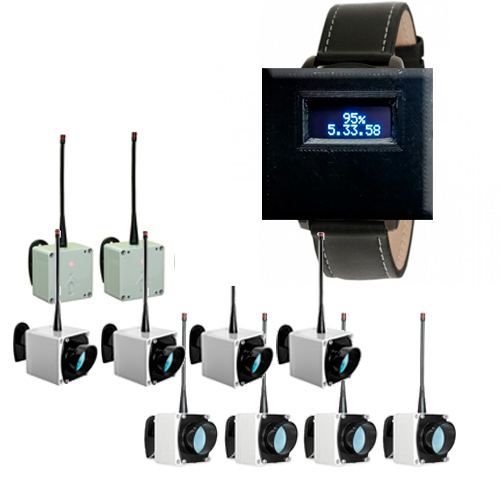

The fast-turning complex SPLAV FDAMC "Braslet" is a system of autonomous object protection and consists of autonomous passive infrared outdoor detectors using a radio channel and a receiving device with the ability to arm/disarm the system.
The detectors use a 433.92MHz two-way radio channel using LoRa technology, with a range of 7.5 km. It is used for organizing operational events.
- 10 passive infrared detectors (4 L50RA Braslet, 4 L70RA Braslet, 2 V 10RA Braslet) and one Braslet R wristband receiver
- Self-contained, does not require power replacement for up to 7 years
- transmission of signals over a radio channel up to 7500 m
- The length of the guarded perimeter is up to 340 meters + 2 rooms or entrances.
- addressable switching on and off of detectors
