Centralized monitoring and event logging console for up to 600 channels. Connecting the printer adapter and the relay expander. RS-232. The relay. Supply voltage 10-15 V

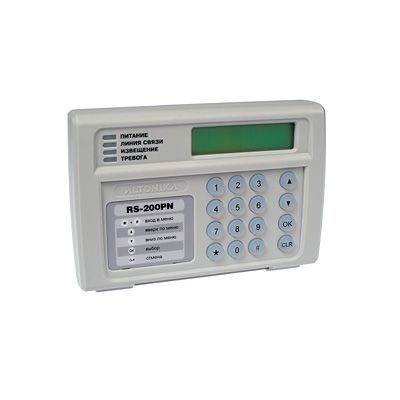

RS-200PNP.2 Rif String Centralized Monitoring Console
The RS-200PN centralized monitoring control panel is designed to create local centralized radio protection systems of medium and large capacity (up to 600 objects). The following types of objects may be protected:
- stationary (cottages, cottages, shopping pavilions, warehouses, garages, etc.)
- wearable alarm radio buttons (for security guards, staff, etc.).
It is recommended to install RS-200T, RS-200TR and RS-200TR-RB communicator transmitters at stationary facilities, which have the functions of an object device and periodic monitoring of the serviceability of the communication channel. These transmitters have the states TAKEN and TAKEN OFF, monitor the 4-5 alarm loops with sensors connected to them, generate encoded radio signals about the state of the object and periodically send them on the air (hereinafter, the term "notification" is used to denote the radio signal from the object). <p&The notification transmission period depends on the condition of the facility and varies from 2-3 seconds immediately after the alarm to 3-7 minutes normally. It is also possible to use inexpensive stationary transmitters RR-701TS , RR-701TS4 and RR-701TS-L.
Technical Specifications:
- 5 inputs for external receiving modules
- 300 or 600 transmitters of RS-200 and RR-701 systems
- Control of the communication channel from the transmitters of the Rif String-200 system
- Display of the alarm type and the status of objects on the LCD
- Built-in clock and calendar
- Event protocol in non-volatile memory
- RS-232 output to computer
- Output to the printer via an optional adapter
- Audible alarm
- Signal Relay
- Convenient menu system
- Information capacity: 300 or 600 transmitters
- Internal protocol capacity: 4048 events
- Supply voltage: 10 to 15 V
- Consumption current:
- with the backlight on: no more than 250 mA
- with the backlight off: no more than 100 mA
- Relay Parameters:
- Maximum voltage at current up to 100 mA: 72 V
- Maximum current at 12 V: 2 A
- Operating temperature range: -10... +40°C
- Overall dimensions (without antenna): 148x102x36 mm
