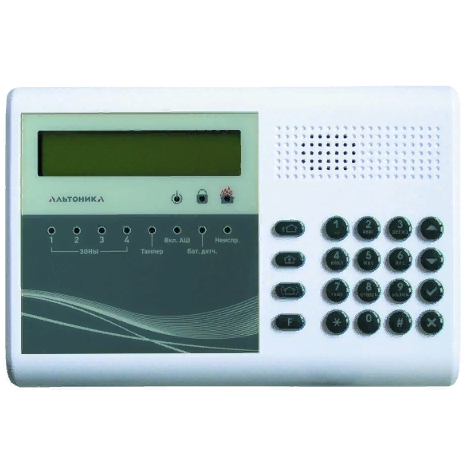

The RS-201PN centralized monitoring console is designed to process and display messages from the RS-201RD receiver and is part of the Lonta Optima system console.
In most cases, the control center is connected to a computer with the software of the operator's workplace, but it can also be used independently. It has been produced in a new case since 2021.
Technical Specifications:
- Information capacity: 600 transmitters
- Receiver input: 3 RS-485 inputs (up to three receivers simultaneously)
- Output to a computer with security software: USB/RS-232-1
- Expander output: RS-232-2
- Internal protocol in non-volatile memory: 6000 events
- External button input
- Built-in clock and calendar with CR1220 backup battery
- Liquid Crystal Indicator
- Monitoring of system events in case of computer emergency shutdown
- Indication of the level of received signals from object transmitters
- Supply voltage: 10 to 15V
- Current consumption: when the backlight is on, no more than 250 mA, when the backlight is off, no more than 100 mA
- Alarm relay 4 pcs.: switching voltage up to 60V at a current of up to 1A/ switching current up to 2A at a voltage of up to 15V
- Operating temperature range: from 0 to +40
- Relative humidity: up to 90% at 20C, without condensation of moisture
- Overall dimensions: 220x150x38 mm
