The fast-turning complex SPLAV FDAMC "Braslet" is a system of autonomous object protection and consists of autonomous passive infrared outdoor detectors using a radio channel and a receiving device with the ability to arm/disarm the system.
The detectors use a 433.92MHz two-way radio channel using LoRa technology, with a range of 7.5 km. It is used for organizing operational events.

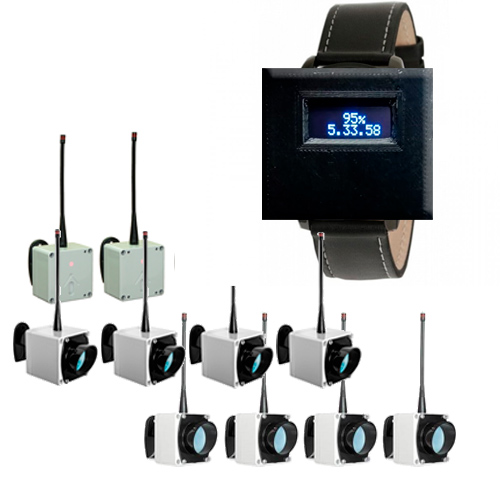

The fast-turning complex SPLAV FDAMC "Braslet"contains 10 passive infrared detectors SPLAV (4 L50RA Braslet, 4 L70RA Braslet, 2 V10RA Braslet) and one wristband receiver Braslet R.
Battery life:
- detectors - up to 7 years (SAFT LS17500 battery)
- alarm receiver - up to 10 days.
Charging via the microUSBicroUSB port.
Addressable switching on and off of detectors.
Detection zones:
For detectors "SPLAV L50RA Braslet":
Top view
Side view
For detectors "SPLAV L70RA Braslet":
Top view
Side view
For detectors "SPLAV V10RA Braslet)":
Top view
Side view
It can be equipped with stationary radios with event monitoring and logging of up to 600 detectors.
