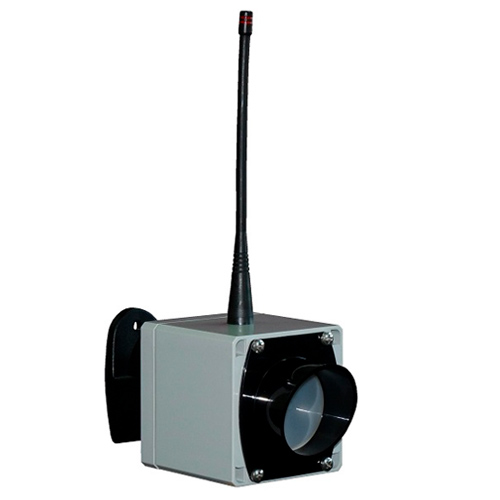

Self-contained (up to 7 years of operation from a single power source) with a radio channel of 433.92 MHz (transmission range of 7,500 meters) digital passive infrared detector "SPLAV L70RA Braslet" with a linear zone length of 70 meters (50 meters in outdoor conditions) and height/width The maximum distance zones are 2x3 meters. It is intended for the organization of a mobile or stationary perimeter security line. There are three mounting options – a stationary bracket, a tripod, and a "clothespin" type bracket.
The detectors use fully digital detection technology. The infringer detection algorithm is registered as intellectual property (certificate No. 2006612146 dated 06/20/06 ROSPATENT).
To increase the stability of the detector in difficult conditions, it is possible to set the adaptive sensitivity mode.
It is a part of the mobile fast-turning complex "SPLAV-DBK "Braslet".
Main technical characteristics:
- Detection range not less than: 70 m
- Detection range in the mode of increased protection against false alarms is not less than: 50 m
- Availability of adaptive sensitivity mode
- Sensitivity levels: 15
- DC power supply voltage: 3.6V
- Battery Capacity: 2.4Ah
- Current consumption:
- standby mode no more than 0.025 mA
- message transmission of at least 30 mA
- The transmission range of the alarm radio signal is 7500 m
- Operating temperature: -40...+55 °C
- Dimensions: 177x80x260 mm
- Weight: 0.4 kg
IMPORTANT! "SPLAV L70RA2" contains an RS-201TK2 (Altonic) transmitter. The RS-201 series does not yet have mobile receiver versions. There is an option to use RR-701TS/TS4 transmitters controlled from the RS-201R receiver relay to transmit alarms to RM4 mobile receivers.

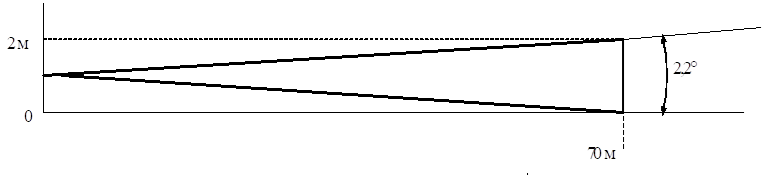

Detection zone
Top view
Side view
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
- Transmission range up to 7,500 m
Features:
- requires periodic recharging or replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference
