The SPLAV-FDAMC 4 kit consists of 4 autonomous security detectors in any combination ("L50RA", "L70RA", "V10RA", Accel RA) and a 4-channel mobile alarm receiver "RR-701RM4".

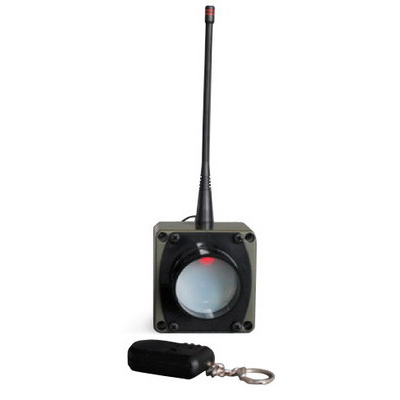

Fast-deployable autonomous mobile complexes "SPLAV-FDAMC" are designed to organize security lines using wireless autonomous passive infrared detectors "SPLAV L50RA","SPLAV L70RA", "SPLAV V10RA" or vibration detectors "ACCEL RA SPLAV" and alarm radios "RR-701RM4" (Altonica company).
It is an ideal option for monitoring local zones and perimeters, and provides high-quality detection of intruders. The use of fast-deployable autonomous mobile complexes "SPLAV-FDAMC" increase the safety of personnel of patrol, guard, and security services. Our complexes are often used during special operations by the FSB, the Ministry of Internal Affairs, and the Ministry of Emergency Situations of the Russian Federation.
Dust- and moisture-proof housing, weight 4 kg, up to 7 years of operation from a single battery.
Main technical characteristics:
- The alarm transmission range is up to 800 meters
- The transmission range of an alarm signal with an external antenna at reception is up to 2500 meters
- Operating time from a single power source:
- detector "SPLAV L50RA","SPLAV L70RA", "SPLAV V10RA" - up to 7 years;
- ACCEL RA SPLAV detector - up to 5 years;
radio alarm receivers "RR-701RM4" - up to 3 months.
- The operating temperature range is -40..+60oC
Detection zones:
For detectors "SPLAV L50RA":
Top view
Side view
For detectorsSPLAV L70RA2:
Top view
Side view
For detectors"SPLAV V10RA":
Top view
Side view
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
Features:
- compatible only with some security complexes using the radio channel
- requires periodic recharging or replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference
There are three possible mounting options:
on the standard bracket:
on a "CLOTHESPIN" type bracket
on a tripod
on a magnet
It can be equipped with stationary radios with event monitoring and logging of up to 600 detectors.
The number of components and the composition of the complex may vary.Minimum set (Detector "SPLAV L50RA" and mobile alarm receiver "RR-701RM"):
