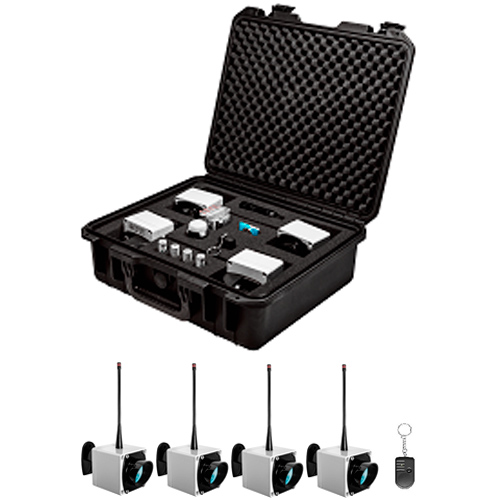

The fast-turning autonomous mobile complex "SPLAV-FDAMC 4x70" contains a set of 4 security detectors "SPLAV L70RA" and a mobile 4-channel alarm receiver "RR-701RM4", dust- and moisture-proof the briefcase. The total length of the protected perimeter is up to 280 meters.
The ideal option for monitoring extended local zones, perimeters, provide high-quality detection of intruders. The use of fast-deployable autonomous mobile complexes "SPLAV-FDAMC 4x70" increase the security of territories and facilities where there is no stationary security.
The detectors use fully digital detection technology. The infringer detection algorithm is registered as intellectual property (certificate No. 2006612146 dated 06/20/06 ROSPATENT).
To increase the stability of the detector in difficult conditions, it is possible to set the adaptive sensitivity mode.
Main technical characteristics SPLAV L70RA:
- Detection range not less than: 70 m
- Detection range in the mode of increased protection against false alarms is not less than: 50 m
- Availability of adaptive sensitivity mode
- Sensitivity levels: 15
- DC power supply voltage: 3.6V
- Battery Capacity: 2.4Ah
- Current consumption:
- standby mode no more than 0.025 mA
- message transmission of at least 30 mA
- Transmission range of the alarm radio signal:
- in line of sight:
-
- for a stationary receiver with a remote antenna: 10,000 m
-
- in line of sight:
- Operating temperature: -40...+55 °C
- Dimensions: 177x80x260 mm
- Weight: 0.4 kg
Top view
Side view
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
It can be equipped with stationary radios with event monitoring and logging of up to 600 detectors.
