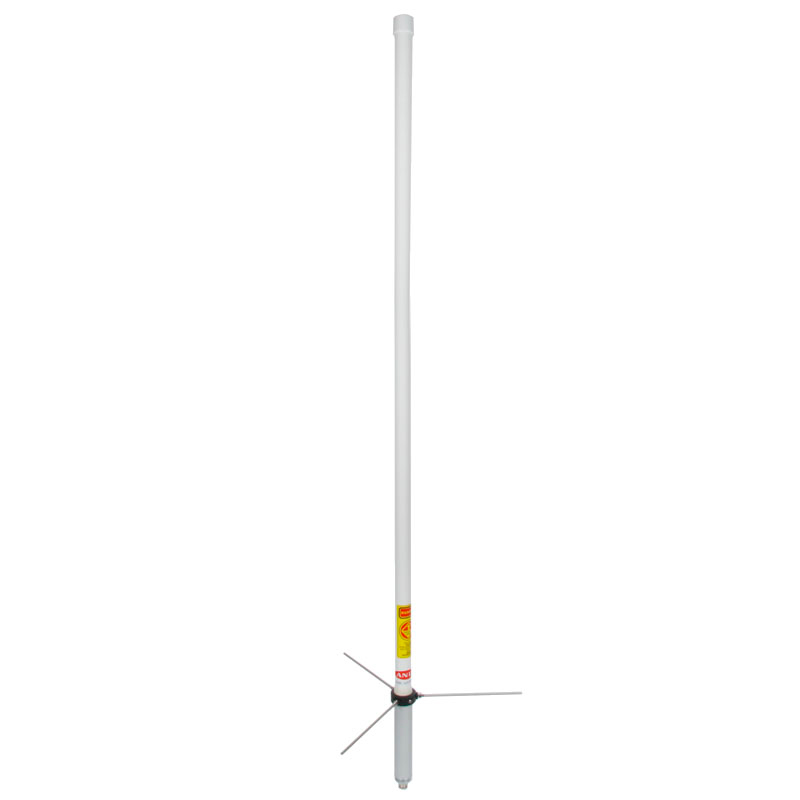

The Anli A-200 MU-N antenna is a basic all-directional UHF antenna with a relatively high gain achieved through the use of 3 collinear radiating elements. Phase-shifting chokes connecting the emitting elements ensure their common-mode power supply. This results in a narrow bottom with a maximum perpendicular to the antenna axis. The antenna body is made of cross-wound three-layer fiberglass and is highly resistant to high wind loads.
The Anli A-200 MU-N base antenna is supplied tuned to the 400-420 MHz band, and the conversion to other bands is carried out according to the instructions by shortening the emitting elements. The antenna is powered by a grounded autotransformer. UHF band antennas are supplied with an N connector (socket). The A-200MU-N stationary antenna has been successfully used in the CIS market since 1995.
Advantages of the Anli A-200 MU-N base antenna:
- Low weight and high wind load.
- Low SWR value in a wide UHF frequency range (400-512 MHz).
- The antenna is convenient for installation on building facades and pipe walls.
- Attractive value.
- Easy installation and configuration.
- High quality of execution. The antenna has an extended service life.
A properly assembled Anli A-200 MU-N antenna has the specified parameters and does not require additional configuration. The antenna is connected to the equipment using a feeder of the required length. Laying the feeder along the mast, entering the building and connecting to the equipment must be carried out taking into account lightning protection standards using earthing devices and lightning dischargers. The product does not require any special maintenance. During the operation of the antenna, at least once every six months, it is necessary to visually inspect the condition of the antenna mounts, the fiberglass housing, the feeder and the v/h connectors. In case of mechanical damage, it is necessary to take measures to eliminate them.
Antenna Installation Anli A-200 MU-N:Nearby objects such as trees, power lines, other antennas, etc. can significantly impair the operation of the product. The antenna is mounted on a mast with a diameter of 30-70 mm and should be installed as high as possible and as far away from surrounding objects as possible. When installed on a building, the antenna must be positioned at least 1/4 wavelength (/4) away from the building wall.
Anli A-200 MU-N Package:

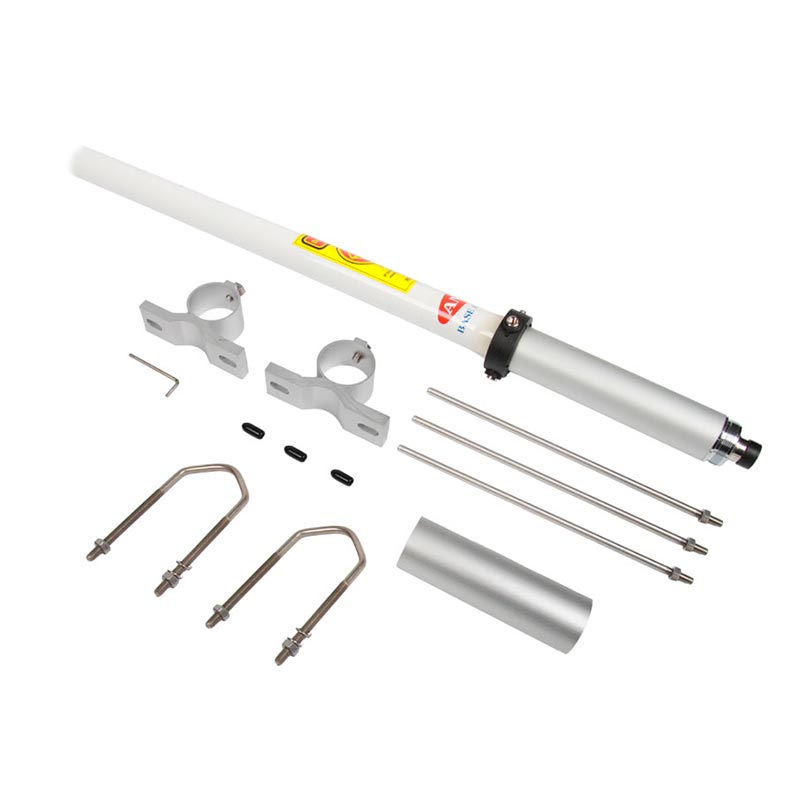

- Matching device with radiating and phase-shifting elements in a collapsible fiberglass case - 1 set.
- Counterweights - 3 pcs.
- Mounting to the mast - 1 set.
- Shipping package.
- Assembly and installation instructions.
The American manufacturer has achieved high-quality assembly in Taiwan, which increases the life of the antenna several times, protects it from moisture, corrosion and UV rays. Therefore, it is easy and quick to assemble, install and configure anywhere. The Anli A-200 MU-N base antenna has very good customer reviews, as the effect of its use is obvious.
Electrical Parameters
- Operating frequency range 400-512 MHz
- Antenna Gain 8 dB
- Vertical polarization
- Communication range up to 50 km
- The width of the bottom in the E-plane is 28°
- 50 Ohm impedance
- Standing wave coefficient (SWR), not more than 1.2
- Maximum input power of 200 W
Design Features
- Antenna Type Collinear 3x5/8
- Product material fiberglass, brass, duralumin
Mechanical Parameters
- Connector type N-female (socket)
Operating Conditions
- all-weather
- Wind load 160 km/h
- Operating temperature from -45°C to +80°C
- Dimensions 180 cm
- Weight 1.8 kg
