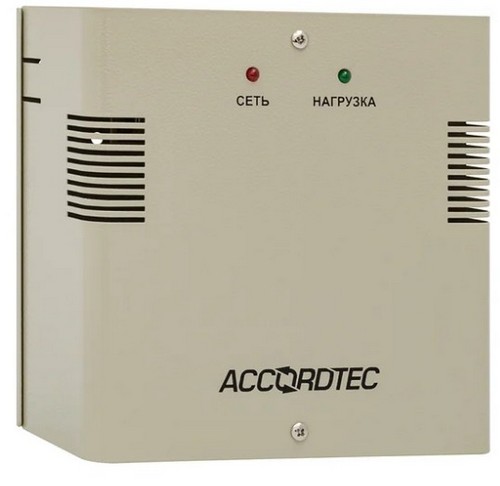

ACCORDTEC uninterruptible power supply unit in a 7 Ah battery case. AC 165-264 V, U output. DC BBP-40 00-00029606 is used to connect and power various devices such as electrical and radio equipment, video surveillance systems. It has built-in protection against deep discharge.
The power supply unit has a durable and stylish housing. It can only be used indoors in conjunction with security and fire alarm devices. The power supply is protected from overheating.
Technical Specifications:
- Min input voltage 165V/li>
- Max input voltage 264 V/li>
- Number of phases 1
- Output voltage 0-15V/li>
- External battery type
- Battery capacity not applicable Ah/li>
- Operating temperature from -10 to +40°C
- Socket type Terminal block
- Wall mounting type
- Dimensions without packaging 164×169×72 mm
- Rated input voltage 220 V
- Battery supply voltage 14.3 V
- The maximum allowable battery capacity is 1*7 Ah/li>
- Type of cooling passive
- Net weight 0.86 kg
The advantages of ACCORDTEC BBP-40 in a 7 Ah. Uvc case. AC 165-264 V, U output. DC
- DC output voltage 13.4...13.8 V
- Rated load current 4 A/li>
- Maximum load current 4.5V/li>
- Recommended battery is 12 V 7 Ah
- Light indication of operating modes
- Battery protection from deep discharge,
- Compact body 164×169×72 mm
- The uninterruptible power supply unit is designed for uninterrupted power supply of security and fire alarm devices and active sensors with a voltage of 12V DC>
- Durable metal housing is resistant to mechanical stress
- Short circuit protection
- Wall mounting and disassembly does not require much effort
- <lt;li>Can be used for professional purposes
- Suitable for operation at a relative humidity of no more than 80%
- Built-in overcurrent protection
- Light weight
- Compact housing
- Mobility, does not take up much space
- Requires no special maintenance
- Suitable for indoor installation - at home, in the office
