Directional antenna LTE 800 / GSM 900 / GSM 1800 / UMTS 2100 / LTE 2600, 9.5 / 10÷14 dB. It is used with the "Staya" complex, provides SMS transmission up to 30 km to the base station.

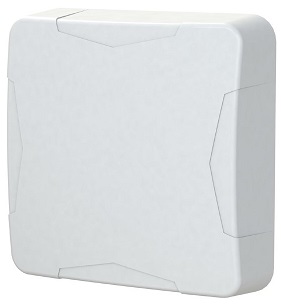

The universal external antenna NITSA-5 is designed to be used in a set with cell phones, modems or repeaters of standards:
- 2G(EDGE, GPRS on GSM900, GSM1800 frequencies)
- 3G (UMTS2100, UMTS900)
- 4G (LTE800, LTE900, LTE1800, LTE2600, LTE2100, LTE2300)
- WI-FI (IEEE 802.11b, g, n)
The antenna can be supplied with a metal or plastic mount. The metal mount allows you to change the angle of the antenna and smoothly change the tilt of the antenna polarization. The low-cost plastic mount is equipped with a worm clamp, which allows you to discretely (in 45-degree increments) change the tilt of the antenna polarization, but it does not allow you to change the tilt of the antenna in the vertical plane, which is acceptable when moving away from the BS or from the sources of the reflected signal by more than a few hundred meters, and in the absence of a height difference commensurate with the distance. The antenna is recommended for use at distances up to 10 km from the base station.
Advantages:
- lt;li;gt;Universal antenna with a wide directional pattern and operating in all speed standards. The antenna is reliably protected from precipitation by a housing made of UV-resistant plastic and has an extended service life. The antenna has a high gain, low SWR in a wide frequency band.
- Reliable N-type connectors are used in the antenna <lt;li>Flexible mounting assembly configuration
Package Contents:
- Antenna NITSA-5/li> lt;li;Mounting kit for mounting on the mast (plastic or metal)
- Installation Instructions
- Packaging made of microgofrocard or polyethylene
Electrical Characteristics of the NITSA-5:
- <lt;li>Operating frequency range, MHz: 790/1960/1700/2700/li>
- Gain, dBi: 9.0/9.5/9.5/13.5/li>
- Bottom width (-3dB), deg: 63÷69/29÷91
- Side lobe level max, dB: -13
- Forward/backward ratio, dB: 18
- Input impedance, Ohms: 50
- <lt;li>SWR in the operating frequency range at the inputs, no more than: 1,6 <lt;li>Permissible power, W: 10
- Polarization of received/emitted waves: vertical/horizontal
Mechanical Characteristics of the antenna:
- <lt;li>Weight with mounting, g: 1175/li>
- Overall dimensions without mounting, mm: 200x200x60
- Connector: N-female
- Antenna material: Galvanized steel
- Protective box Material: Polycarbonate
- Class of dust and moisture protection: IP67 ;
- Protective coating: Polymer coating
- Operating temperature range: -50°C to +80°C/li>
