Autonomous (up to 2 years old) linear passive infrared outdoor detector "SPLAV L50GSM" with a linear zone length of 50 meters (30 meters in outdoor conditions) and a height / width of the zone at a maximum distance of 2x3 meters. It is designed for outdoor protection of perimeters of objects up to 50 meters long and indoor areas with notification via GSM communication channels.
When a person crosses the detection zone, an alarm notification is generated by dialing through cellular communication channels to phone numbers that are previously entered into the SIM card (numbers under the names; "1", "2", "3" in the address book of the SIM card).
If the "answer" button on the called phone has been pressed on an incoming call, the SPLAV L50GSM detector switches back to standby mode. If the first number did not answer the incoming call, two more attempts will be made to dial, after which attempts to dial the second and third numbers will be conducted in the same way.
If no replies are received (or the phones are disconnected or busy), an SMS message will be sent to the first number.
When the battery is low, a discharge message will be sent to the first number in the address book of the SIM card. The battery can be recharged using a miniUSB charger or a device with a USB output, such as a computer. The detector is switched on/off using a key, the key larva is closed with a rubber cap to protect it from dust and moisture.
It is ideal for solving the tasks of mobile or stationary security of remote facilities - cottages, dachas, cars, garages, hangars, warehouses, etc. It does not require external power supply, wires, special installation. The battery life is up to 2 years.
The detector is powered by an internal DC source (battery) with a rated voltage of 3.7 V.
The detector is designed for 24-hour outdoor operation (enclosure protection class IP65) at ambient temperatures from minus 40 °C to 55 °C and relative humidity up to 98% at 35 ° C without condensation.
Continuous battery life is up to two years.
Main technical characteristics:
- Detection range of at least 50 meters
- Detection range in advanced false alarm protection mode is at least 30 meters
- Availability of adaptive sensitivity mode
- Sensitivity levels: 15
- DC power supply voltage: 3.4-4.2 V
- Current consumption:
- standby mode no more than: 0.02 mA
- in alarm mode: 2050ma
- Alarm notification duration not less than: 25 s
- GSM Modem power class:
- GSM 850/900 - 4 (2W)
- GSM 1800/1900 - 1 (1W)
- The transmission range of the alarm signal depends on the state of the cellular network
- Operating temperature: -40...+55 °C
- Dimensions: 160x80x82 mm
- Weight: 0.4 kg

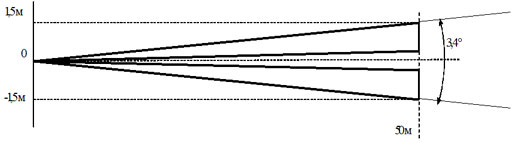

Detection zone
Top view
Side view
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 2 years without recharging
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
- does not require additional reception equipment and alarm devices
Features:
- requires periodic recharging
- The alarm transmission capability depends on the availability of a stable cellular connection at the detector location
- it is required to provide for the cost of a subscription fee for using cellular communications, monitor the balance of the SIM card and comply with the terms of the contract with the mobile operator
