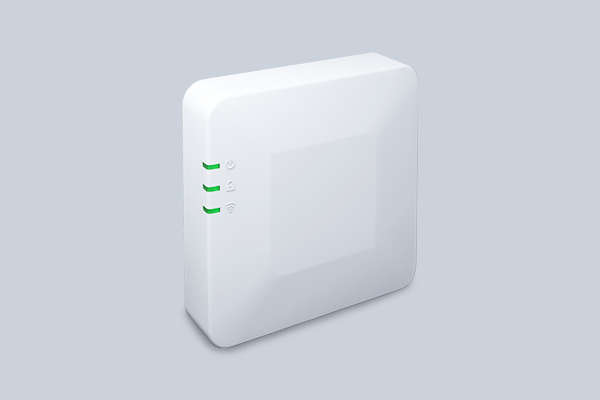

Livi Smart Hub 4G – the center of the Livicom system. Combines sensors and devices into a single whole. The hub controls the operation of the devices through commands received from the host, receives information from sensors, and sends notifications to the smartphone and the security console.The hub operates on Ethernet, Wi-Fi, and 2.5G, 4G cellular networks.
Features:
- Wi-Fi support:The Livi Smart Hub 4G can work on both Ethernet and Wi-Fi networks. Install the hub in a secluded place, connect it to a 220 V network and be sure that the Livicom system is working.
- Easy start:Activating and configuring the Livi Smart Hub 4G is simple: install the Livicom mobile app on your smartphone and follow the instructions. The installation will take no more than 1 minute.
- One Livi Smart Hub 4G– many uses: Up to 256 Livi wireless devices can be connected to one Livi Smart Hub 4G. Sensors and devices communicate with the hub using the Livi protocol, forming a single system.
- Connection to the security panel:The Livi Smart Hub 4G can be connected to a centralized monitoring console. In this case, alarm alerts will be received not only by Livicom users, but also by security company employees who will react to the danger in a timely manner. Turn your space into a protected fortress!
Features:
- Operating range 868 MHz
- The range of the radio channel is up to 1000 meters
- Radio channel capacity of 25 MW
- The first 10/100 Mbit/s Ethernet communication channel
- The second 2.4GHz Wi-Fi communication channel
- Third communication channel 2.5G GSM / GPRS (900 / 1800 MHz),
- 4G – LTE (800 / 1800 / 2100 / 2600 MHz)
- The main power supply is from 220 V mains via a 5 V, 1 A adapter
- Power supply backup battery BL-5C, 1020 mAh
- Battery life up to 11 hours;
- Maximum number of Livi 256 radio channel devices
- Enclosure protection class IP30
- Operating temperature range from 0 to +45 °C
- Overall dimensions of the case 130 x 130 x 35 mm
Equipment:
- Livi Smart Hub 4G
- BL-5C/li Rechargeable battery
- Power supply 5 V, 1 A
- Ethernet cable (patch cord), 2 m
- Mounting Kit
- Passport
