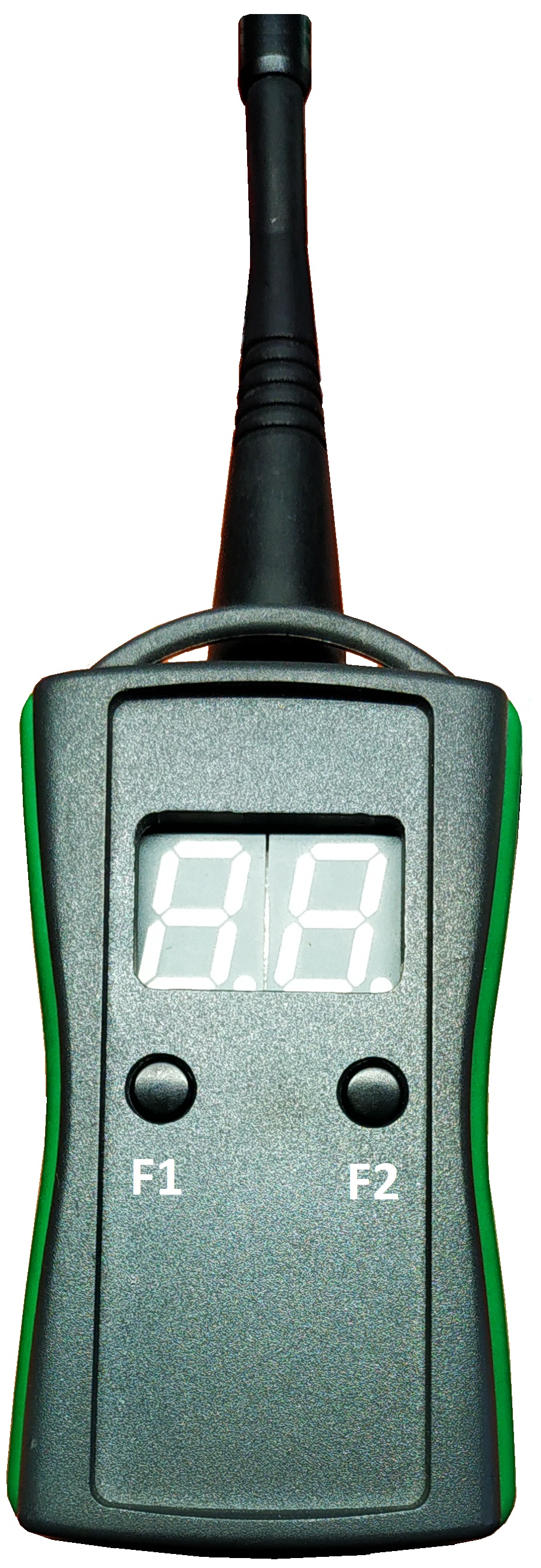

Digital autonomous point vibration detector "SPLAV ACCEL LoRA" with a 433MHz LoRa technology radio channel is designed to detect vibration, position changes, and attempts to break into a protected object.
The detector can be used to protect objects; fences, doors, safes, vehicles, museum exhibits, production equipment, etc. The detector is designed for round-the-clock operation both indoors and outdoors (enclosure protection class IP65) at ambient temperatures from minus 40 ° C to 55 ° C and relative humidity up to 98% at 35 ° C without condensation.
The detector is powered by a built-in battery (3.6 V AA battery SAFT LS14500 is included in the delivery package), with an estimated battery life of up to 7 years, subject to one alarm per day. The current consumption in standby mode is 20 Ma.
Main technical characteristics:
- Vibration sensitivity: 0.1..1.6 m/s2
- Number of sensitivity gradations: 5
- Operating modes: 3
- Current consumption in the dej/alarm mode is not more than 0.06/2050 mA
- Battery discharge monitoring at a voltage of less than 3.6-3.8 V
- Dimensions: 96x76x43 mm
- Weight not more than: 0.2 kg
The detector design ensures:
- magnetic mount;
- alarm indication;
With the local spot detector SPLAV RD LoRA it is convenient to guard agricultural machinery in the field, car, motorcycle, luggage!No wires, fasteners, or additional equipment!
IMPORTANT! "SPLAV ACCEL LoRa" works with a stationary receiver "SPLAV RD LoRa" with a remote display unit RS-200BVI (information capacity of 64 detectors) or in conjunction with RS-200PN (up to 300 detectors), as well as with a mobile receiver "SPLAV RM LoRa" (up to 100 detectors).
This is the first series of equipment in which the detectors transmit information about an alarm, opening of the case or battery discharge to the receivers. There is a choice of transmitter power and protocol with a pilot tone for economical mobile applications or without it for stationary facilities with a large number of detectors.
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- increased signal transmission range over the radio channel
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
- case opening control, battery voltage
Features:
- compatible with only some security systems using the radio channel
- requires periodic recharging or replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference
