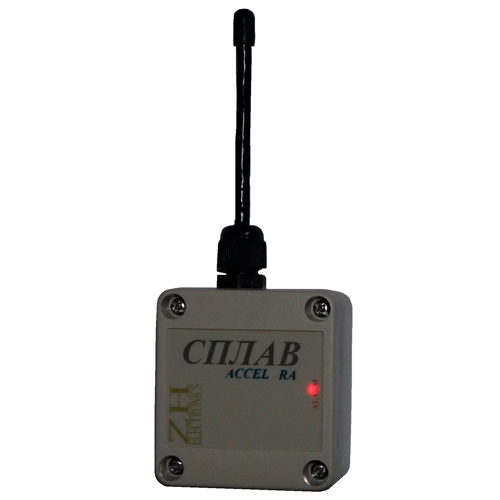

Digital autonomous point vibration detector "ACCEL RA SPLAV" with a 433MHz radio channel (RifRing-701TM, Altonica, transmission range 800-2500 meters) is designed to detect vibration, position changes, and attempts to break into a protected object.
The detector can be used to protect objects; fences, doors, safes, vehicles, museum exhibits, production equipment, etc. The detector is designed for round-the-clock operation both indoors and outdoors (enclosure protection class IP65) at ambient temperatures from minus 40 ° C to 55 ° C and relative humidity up to 98% at 35 ° C without condensation.
The detector is powered by a built-in battery (3.6 V AA battery SAFT LS14500 is included in the delivery package), with an estimated battery life of up to 7 years, subject to one alarm per day. The current consumption in standby mode is 20 Ma.
Main technical characteristics:
- Vibration sensitivity: 0.1..1.6 m/s2
- Number of sensitivity gradations: 5
- Operating modes: 3
- Current consumption in the dej/alarm mode is not more than 0.06/2050 mA
- Dimensions: 96x76x43 mm
- Weight not more than: 0.2 kg
- Transmission range of the alarm radio signal in line of sight:
- for keychain RR-701RM4: 800 meters
- to a stationary receiver with a remote antenna: 2 500 meters
The detector design ensures:
- magnetic mount;
- alarm indication;
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- increased signal transmission range over the radio channel
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
Features:
- compatible with only some security systems using the radio channel
- requires periodic recharging or replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference
