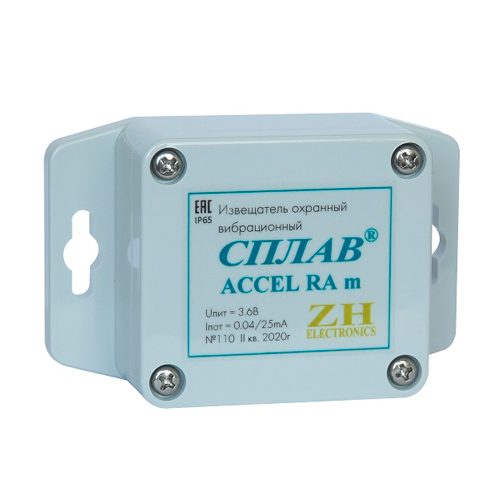

The digital autonomous point vibration detector "ACCEL m SPLAV" with a radio channel of 869.25 MHz (transmission range of 500 meters) is designed to detect vibration, position changes, attempts to break into a protected object and are used as part of the fast-rotating security complex FDAMC "Staya".
The detector can be used to protect objects; fences, doors, safes, vehicles, museum exhibits, production equipment, etc. The detector is designed for round-the-clock operation both indoors and outdoors (enclosure protection class IP65) at ambient temperatures from minus 40 ° C to 55 ° C and relative humidity up to 98% at 35 ° C without condensation.
The detector is powered by a built-in battery (3.6 V AA battery SAFT LS14500 is included in the delivery package), with an estimated battery life of up to 7 years, subject to one alarm per day. The current consumption in standby mode is 20 Ma.
Main technical characteristics:
- Vibration sensitivity: 0.1..1.6 m/s2
- Number of sensitivity gradations: 5
- Operating modes: 3
- Current consumption in the dej/alarm mode is not more than 0.06/2050 mA
- Battery discharge monitoring at a voltage of less than 3.6-3.8 V
- Dimensions: 96x76x43 mm
- Weight not more than: 0.2 kg
The detector design ensures:
- magnetic mount;
- alarm indication;
IMPORTANT! "SPLAV ACCEL RA m" are used only as part of a fast-turning security complex FDAMC "Staya" with a radio channel at 869.25 MHz.
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
- Battery voltage monitoring
Features:
- compatible only with security complexes FDAMC "Staya"
- requires periodic recharging or replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference
