The fast-turning complex FDAMC "Staya" is a system of autonomous object protection and consists of autonomous passive outdoor infrared and vibration detectors, a receiving and transmitting module with a remote GSM antenna and a radio unit for arming / disarming the system.
The detectors use the 869.25 MHz radio channel, the receiving and transmitting length is up to 500 meters. GSM channel control.

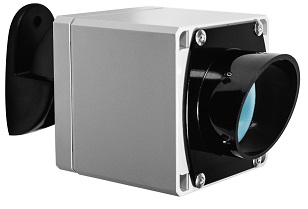

One complex can be equipped with FDAMC "Staya" up to 20 autonomous detectors L50RAm, L70RAm, V10RAm, Accel RAm.
In addition to the detectors, the FDAMC "Staya" includes:

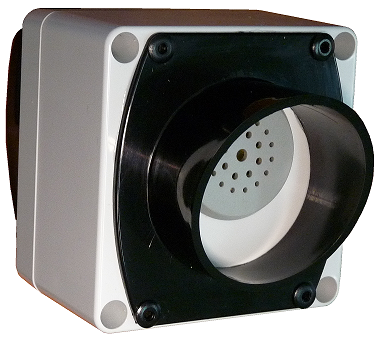

- Autonomous street siren SPLAV Siren m.

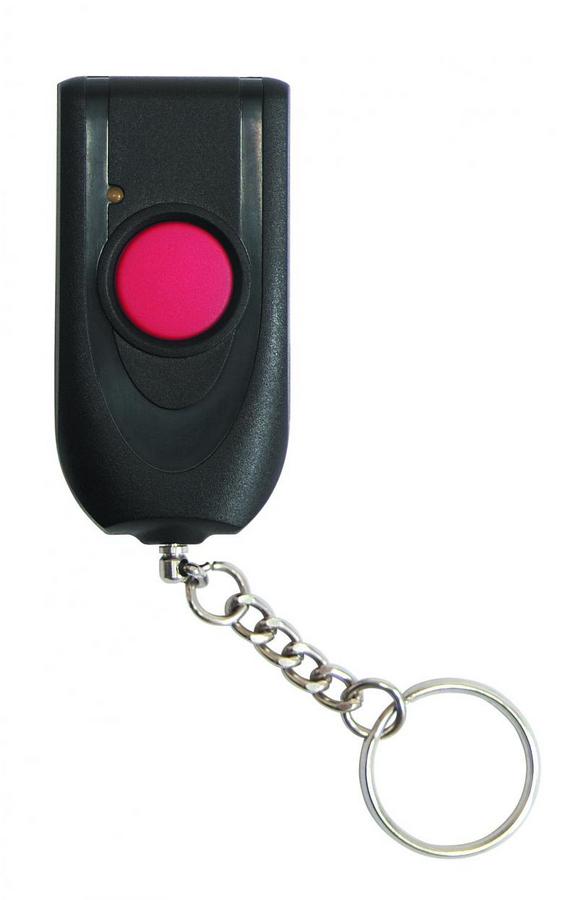

- Radio buttons for on-off control of the TM m system.
- Receiver-keychain 10 channels RM m.
- Relay alarms in SMS messages with transmission up to 50 km to the base tower SPLAV L70GSM m (requires a SIM card).
Up to 2 years of battery life.

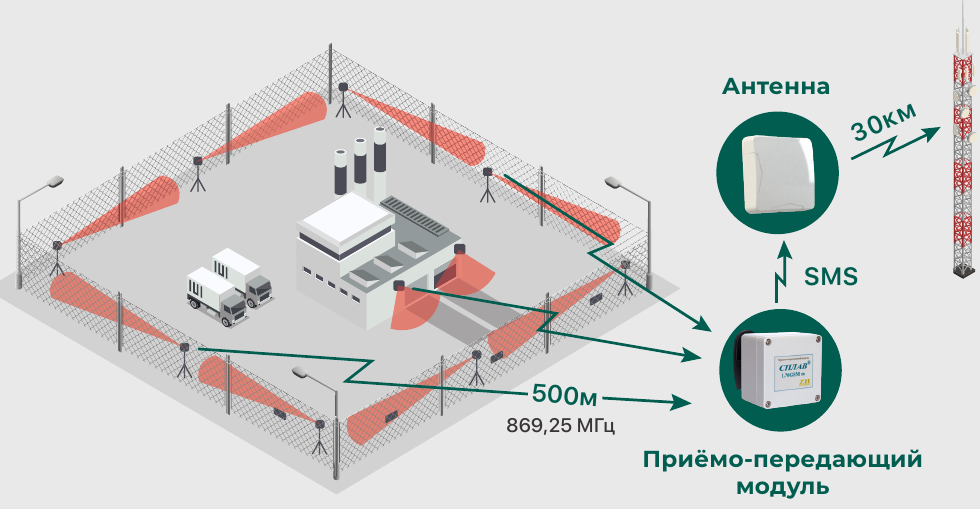

An example of the organization of a security complex FDAMC "Staya" (8 detectors L50RAm and two detectorsV10RAm):
In the above diagram, the perimeter and entrance areas are guarded by autonomous outdoor passive infrared detectors. Alarms are sent via a radio channel (up to 500 m away) to the receiving and transmitting module, and then transmitted over the GSM network (with a remote GSM antenna, up to 30 km away) to the cell phone of the person responsible for security.

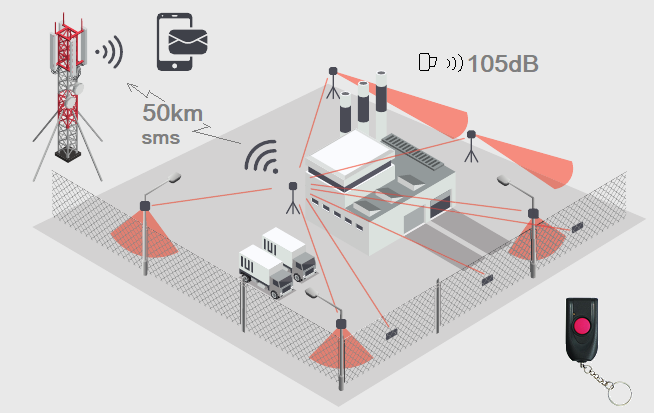

Another example of the organization of a security complex FDAMC "Staya" (2 detectors L70RAm and three detectors V10RAm):
In the presented diagram, the perimeter and entrance areas are guarded by autonomous outdoor passive infrared detectors. Alarms come via a radio channel (distance up to 500 m) to the receiving and transmitting module, and then a siren (105 dB) is triggered, an alert is sent to the guard's keychain and an alert is transmitted over the GSM network (with a remote GSM antenna distance up to 50 km) to the cell phone of the person responsible for the guard.
Detection zones:

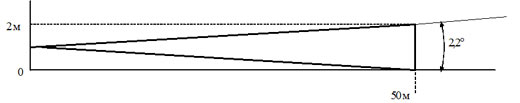

For SPLAV L50RAm detectors:
Top view
Side view

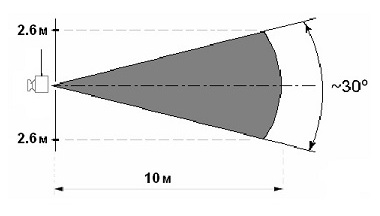

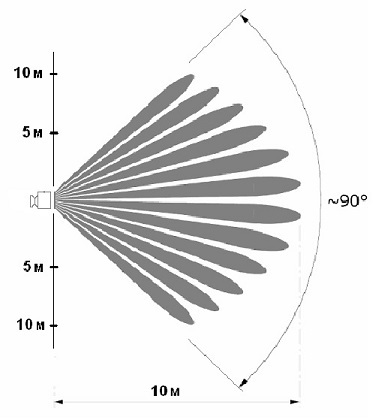

For"SPLAV V10RAm" detectors:
Top view
Side view
Main technical characteristics:
- The range of transmission of the alarm signal of the detectors "SPLAV L50RAm","SPLAV L70RAm", "SPLAV V10RAm", "SPLAV ACCEL RAm" - up to 800 meters
- Operating time from a single power source:
- detector "SPLAV L50RAm","SPLAV L70RAm", "SPLAV V10RAm" - up to 7 years;

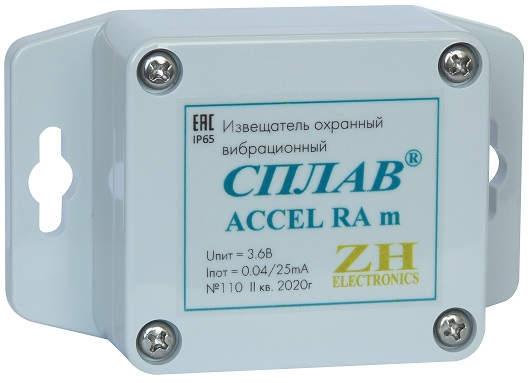

- ACCEL RAm SPLAV detector - up to 5 years;
- The operating temperature range is -40..+60oC
Advantages:
- self-contained - does not require installation of power and communication wires
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
Features:
- requires periodic recharging or replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference

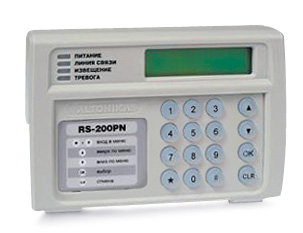

It can be equipped with stationary radios with event monitoring and logging of up to 600 detectors.
