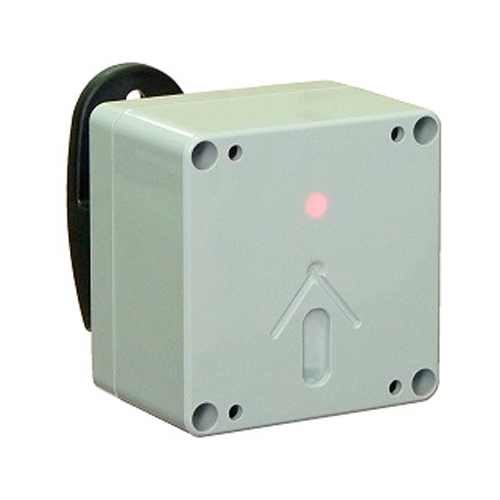

Digital autonomous optoelectronic passive infrared single-position detectors with a volumetric zone "SPLAV V10RA m" are designed to protect objects as part of a fast-rotating security complex FDAMC "Staya" by issuing an alarm notification over the radio channel 869.25 MHz (transmission range 500 meters) when the intruder crosses the volumetric detection zone.
The detector is powered by a built-in battery (3.6 V AA battery SAFT LS14500 is included in the delivery package), with an estimated battery life of up to 7 years, subject to one alarm per day. The current consumption in standby mode is 20 Ma.
The detectors use fully digital detection technology. The infringer detection algorithm is registered as intellectual property (certificate No. 2006612146 dated 06/20/06 ROSPATENT). An alarm is issued when an object is detected in an area with an opening of 30 degrees vertically, 90 degrees horizontally, a range of up to 10 meters, with object movement speeds from 0.1 to 5 m/s.
The integrated bracket is designed for mounting the detector on a wall or pole.
Main technical characteristics:
- The alarm transmission range is 500 meters
- Detection range: up to 25 meters;
- Recommended detection range in outdoor conditions: 10 meters
- Adaptive sensitivity mode;
- Sensitivity levels: 15
IMPORTANT! "SPLAV V10RA m" are used only as part of a fast-deployable security FDAMC "Staya" with a radio channel at 869.25 MHz.
Detection zone:
Top view
Side view
To increase the stability of the detector in difficult conditions, it is possible to install a mode of increased protection against false alarms (the "FALSE IMMUNITY" jumper on the printed circuit board). At the same time, the maximum range of the detection zone is reduced to 8 meters.
Advantages:
- self-contained - does not require installation of power and communication wires
- long battery life - up to 7 years
- Easy to install, set up and easy to operate
- high mobility - the ability to easily move and quickly configure the security perimeter
Features:
- compatible only with receiving devices DBK Pack
- requires periodic replacement of the power supply
- the transmission range of the alarm depends on the terrain and the presence of radio interference
