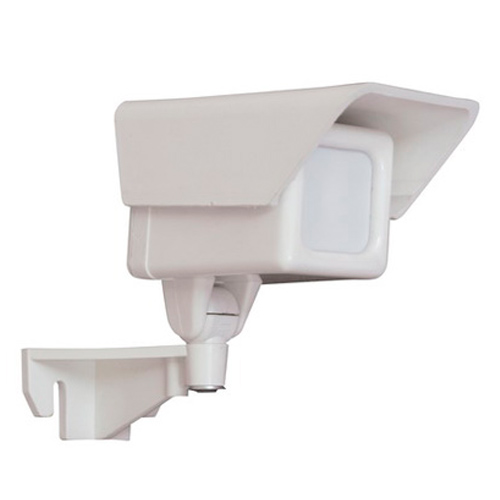

Digital optoelectronic passive infrared single-position wired detectors "SPLAV V10mini" are designed to protect objects both outdoors and indoors by issuing an alarm notification when an intruder crosses a volumetric detection zone with a length of up to 25 meters at speeds from 0.1 to 5 m/s indoors, up to 10 meters outdoors.
The volumetric detectors "SPLAV V10min" use fully digital detection technology and lack analog components that are usually used to amplify, transform, or filter signals.
The intruder detection algorithm, registered as intellectual property (certificate No. 2006612146 dated 06/20/06 ROSPATENT), is aimed at high-quality recognition of the intruder over the entire range of movement speeds and increased noise immunity against small animals and birds.
The detector uses mirror optics with white light filters. Compared to linear detectors of the L50 and L70 series, volumetric detectors of the V10 series are inferior in stability, since there is a lot of information about the temperature of the background surface in the field of view, and it is more difficult to move the detection zone away than in linear detectors, and sometimes it is completely impossible.
The presence of a dual relay with normally-closed and normally-open contacts allows direct switching of low-current sound or light sounders. The bracket integrated with the detector allows installation on a horizontal or vertical surface.
Main technical characteristics:
- Detection range not less than: 8 - 25m
- Detection range: up to 25 meters;
- Recommended detection range in outdoor conditions: 10 meters
- Adaptive sensitivity mode;
- Sensitivity levels: 15
- Vertical detection zone angle: 30°
- Horizontal angle of the detection zone: 90°
- Registered speed: 0.1...5 m/s
- DC power supply voltage: 4-30V
- Current consumption (at U=12V) not more than 9.5 mA
- Executive relay – double (HP, NC):
- switching voltage no more than: 72 V
- switching current not more than: 0.13 A
- Operating temperature -40...+50 °C
- Dimensions 120x90x50 mm
- Weight 0.1 kg
Detection zone:
Top view
Side view
Advantages:
- requires no battery replacement or disassembly maintenance
- Compatible with most security systems from other manufacturers that use a wired alarm system
- can be used with low-power sound or light sounders without additional equipment
- easy to operate
Features:
- Installation of a wired alarm and power transmission system is required
- It is sensitive to the environment and may not be applicable everywhere
