This device provides a high degree of security and convenience thanks to modern wireless communication technologies, allowing you to monitor the situation at any time.
In this text, we will explain why security detectors with a radio module are the optimal solution for your security, what are their main advantages and how they can provide you with full control over a protected object.
1. What is a security detector with a radio module?
A security detector with a radio module is a security system that uses radio signals to transmit data between the detector (sensor) and a central device (control panel, controller). Instead of laying wires throughout the facility, detectors with a radio module can be installed anywhere, while the signal from the sensor is transmitted over the radio channel. This greatly simplifies installation and increases the flexibility of the system.
Such detectors can be equipped with various sensors: infrared motion sensors, vibration sensors. When the detector detects a violation, it transmits a signal to the receiving equipment, which activates the alert.
In our security devices, the range of security detectors with a radio module is indicated by the abbreviation RA in the device name.:
- L50RA SPLAV- autonomous linear passive infrared outdoor detector;
- L70RA SPLAV- autonomous linear passive infrared outdoor detector;
- V10RA SPLAV -autonomous volumetric passive infrared outdoor detector;
- ACCEL RA SPLAV is a local spot detector with up to 2 years of autonomous power supply designed to detect vibration, position changes, and attempts to break into a protected object;
Although the use of GSM module and cellular communication channels is also a radio channel transmission of information, but GSM module detectors are separated into a separate product line and more information about them is written here. In the terminology adopted by our company, detectors with a radio module use a radio channel in the 433MHz band and work with RS-201TK2 (Altonica) and RR-701TS/TS4 transmitters.
Let's consider the general principles used by security detectors with a radio module, that is, alarm notification via radio channels.
2. Advantages of security detectors with a radio module
2.1. Wireless installation and mobility
One of the most significant advantages of security detectors with a radio module is their wireless nature. The absence of the need to lay wires provides a number of undeniable advantages:
- Easy to install. There is no need to carry out complex construction work or lay cables. This allows you to significantly save time and money on installation, as well as avoid damage to the interior decoration.
- Mobility. Such devices can be easily moved if you decide to change the layout or want to enhance protection in another part of the facility. Wired systems, on the other hand, require considerable effort to move and rebuild.
2.2. Reliability and stability

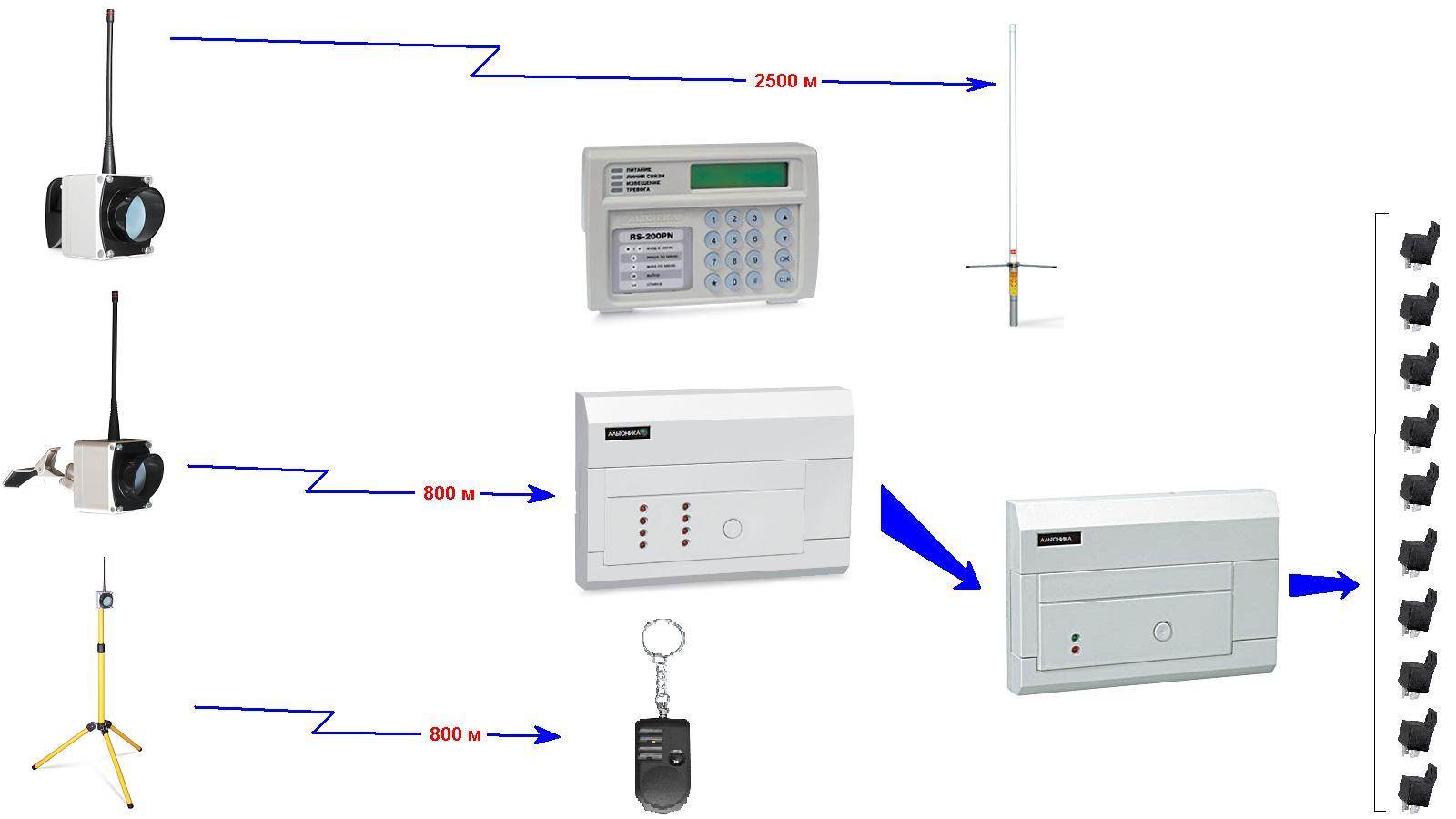

The radio signals used in such detectors provide stable communication at distances from 800 to 2500 meters, with a remote antenna - up to 10,000 meters. In addition, modern radio modules are protected from interference and can operate in weak signal conditions, which makes the system more reliable.
2.3. Easy maintenance
Wireless systems require minimal maintenance. All devices run on batteries, which only need to be replaced after a few years (up to 7 years). Radio modules do not require constant configuration and can automatically diagnose possible problems (for example, low battery or loss of communication), which helps to avoid unpleasant surprises.
2.4. Extensibility and flexibility
A security detector with a radio module can be easily integrated into an existing security system or expanded as needed. You can add new detectors, including those with a different detection principle, without having to lay additional cable lines. All of these devices can operate on a single radio channel, making the system flexible and easily scalable.
2.5. High degree of protection
Wireless detectors with a radio module are equipped with anti-interference systems. This includes encrypting radio signals and using unique codes for each device, which eliminates the possibility of signal interception or tampering. Modern systems can also notify the owner in case of attempted interference or sabotage.
2.6. Autonomy and convenience
The radio transmitters run on batteries, which means the system is completely autonomous. This is especially important for facilities where there is no stable power supply or if you want to install a security system in a remote location (for example, at a cottage or construction site). You don't have to worry about a power outage disrupting the system.
3. When do I need to use a security detector with a radio module?
3.1. To protect residential buildings and dachas
To protect your home or cottage from intruders or emergencies, radio module detectors are an excellent solution. By installing such devices, you will receive reliable protection with minimal installation and maintenance efforts. And most importantly, you will always be aware of what is happening, receiving real—time notifications.
3.2. For offices and business facilities
If you need to provide protection for offices, warehouses, shops or other business facilities, radio module detectors are the best choice. They can be installed in any room without requiring complex construction work. This is convenient, especially if your office rents space and does not allow major changes.
3.3. For warehouses and production facilitiesin
If you have warehouses, production facilities, or other large facilities that require multipoint protection, radio module detectors will help you organize a quick and effective security solution. You can easily place the devices around the entire perimeter of the facility, and they will work synchronously, transmitting signals to the central station.
3.4. To protect temporary objects
Radio modules are ideal for protecting temporary facilities such as construction sites, exhibition halls, events and other temporary structures. They will provide reliable security without requiring complex wiring, which makes it easy to dismantle the system upon completion.
3.5. For remote or hard-to-reach objects
If the object is located in a remote location where there is no wired connection, the radio module will become indispensable. It will provide you with stable communication with the facility, even if there is no internet connection or traditional telephone line.
4. How does a security detector with a radio module work?
The principle of operation of the radio module is simple and effective:
- The device is installed in the right place: It can be a fence, a tree, a support, a door, a window, a corridor, or any other area that needs to be monitored.
- When the detector sensors detect movement, opening of a door or window, the radio signal is transmitted to the system's signal reception unit. The central unit either activates an alert device (siren, keychain), or sends a notification to the owner or to the security console via a mobile application (in the LIVICOM Smart Home system).
- You receive an incident notification, which allows you to take immediate action.
5. Why choose a security detector with a radio module?
Easy to install and operate. Installing and configuring the system does not require much time and effort. Wireless devices are easy to install and do not require complicated wired connections.
Mobility and flexibility. You can install detectors in any part of the facility, change the location of sensors, and expand the system as needed.
Low maintenance. Due to the minimal maintenance costs and the absence of wires, the system becomes more economical in the long run.
