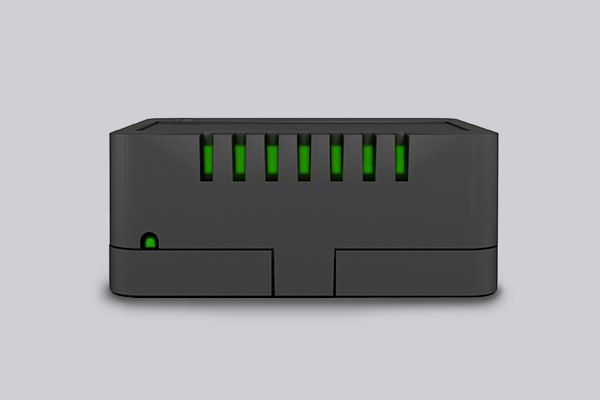

A relay with a galvanically isolated output of the "dry contact" type allows you to control electrical equipment powered by 12/24/220 V. The device supports pulse mode operation.
Attention! The sensor works when connected via the Livi Smart Hub 4G.
Features:
- Connecting electrical equipment
Using Livi Relay, the 12/24 dry contact makes it easy to control sliding or swing gate drives, lifting barriers, light and sound warning systems, electromagnetic or electromechanical locks. - Scripting control
Create automation scenarios for comfort and time savings: lift the barrier, open the gate, control the lock on the gate with a single tap on the smartphone screen. - Pulse mode of operation
Livi Relay 12/24 supports pulse mode of operation with pulse length adjustment. This mode of operation is convenient when controlling lifting barriers, electric locks, and entrance gates. - The thermostat function
The Livi Relay 12/24 dry contact relay can be used in thermostat mode with an external room thermostat input. You will be able to control the boiler equipment connected to the relay and maintain the room temperature at the required level. - Universal mounting
The Livi Relay 12/24 dry contact relay can be installed both in the socket and in the junction box, in the housing of the controlled device or in the electrical panel. - Emergency temperature protection
Livi Relay 12/24 will automatically turn off at a temperature of 70 °C and protect the connected device from overheating.
Features:
- Operating Frequency 868 MHz
- DC supply voltage 10-30 V
- Resistive load (cos)=1) 16 A / 230 V AC 10 A / 30 V DC
- Inductive capacitive load (cos=0.4) 8 A / 230 VAC 10 A / 30 V DC
- 70°C temperature protection
- Power consumption up to 1W
- Operating temperature range from –20 to +55 °C
- Overall dimensions 43 x 36 x 17 mm
Equipment:
- Relay «dry contact» Livi Relay 12/24
- Mounting Kit
- Rules and Conditions for the safe operation of Livi radio devices
