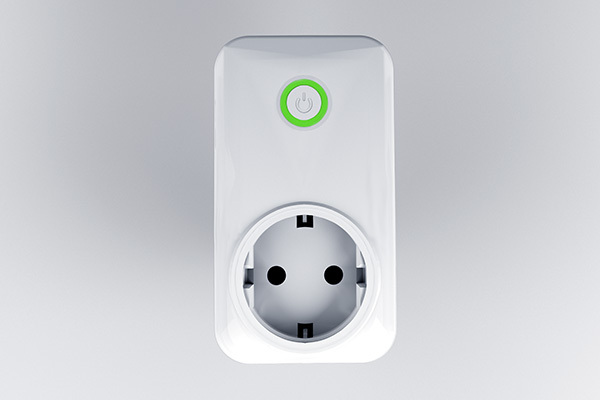

The device allows you to control electrical appliances powered by 220 V mains and calculate power consumption. Turn devices on and off using your smartphone or the control button on the socket body.
Attention! The sensor works when connected via the Livi Smart Hub 4G.
Features:
- Control of electrical equipment using scripts
Automate the operation of electrical appliances using scripts: let the Livi Socket turn on the lamp and water heater at the command of the smartphone, turn off electrical appliances when the security alarm is turned on, restart the router if there are problems with the Internet. - Emergency protection for power, voltage, temperature
The smart socket will turn off automatically and de-energize the connected device if at least one of the indicators is exceeded: power, voltage, temperature. The outlet helps to reduce the risk of a short circuit in the network and the failure of electrical appliances. - Thermostat function
The smart socket can be used in thermostat mode. You will be able to control the heating device connected to the outlet and maintain the room temperature at the desired level. - Measurement of current, voltage, and power<br/<gt;Livi Socket measures the instantaneous mains voltage and power consumption of connected devices, helping to create an optimal safe schedule for home appliances to save the family budget.
Features:
- Operating range 868 MHz
- Control output 1 relay 16 A/ 230 V
- Maximum switching power up to 3500 Watts Maximum load up to 16 A (cos=1), up to 7 A (cos=0.4)
- Power supply from 100 to 253 V (50 Hz)
- Power Consumption 1W
- Maximum current protection of 16 A
- 70°C temperature protection
- There is a control of energy consumption parameters: power consumption, mains voltage
- Operating temperature range –20 to +55 °C
- Overall dimensions 99x52x70 mm
Equipment:
- Smart Socket Livi Socket
- Rules and Conditions for the safe operation of Livi radio devices
