The device monitors the room temperature in real time.
Attention! The sensor works when connected via the Livi Smart Hub 4G.
Features:
Notification when the set temperature is reached: Set a threshold value for the indoor temperature to prevent the effects of freezing at home. If Livi TS detects that the threshold level has been reached, an alert will be sent to your smartphone. Control not only the decrease in temperature, but also its increase. Install an external wired temperature sensor in the bath or sauna and find out that the temperature has reached the setpoint.
"Use in the Thermostat mode": If you have a relay or socket that operates in the Thermostat mode, then you can choose the Livi TS sensor installed or a wired thermosensor connected to it to monitor the temperature in the desired room. For example, if you need to maintain +23°C in the living room, select the temperature sensor installed in the living room from the outlet or relay card and specify the desired temperature.
Connecting external wired temperature sensors: Measure the temperature at two additional points using the DS18B20 external wired temperature sensors. An example of a compatible wired temperature sensor: Mirage-TD-01.
High measurement accuracy: The sensor transmits data with minimal errors: the measurement is performed with an accuracy of up to tenths of a degree in the range from 20 to +55 °C (for the built-in temperature sensor) and in the range from 45 to +85 °C (for an external temperature sensor).
Features:
- Operating range 868 MHz
- The temperature measurement range of the built-in sensor is 20 to +55 °C/li> The temperature measurement range of external sensors is 45 to +85 °C/li>
- The temperature measurement error is not more than 1 °C/li>
- Type and number of external sensors to be connected 2 DS18B20 Par sensors (Mirage-TD-01 or equivalent)
- The wire length for connecting external DS18B20 sensors is not more than 90 m
- The temperature data update rate is 120 c/li>
- Power supply (3V) CR123A lithium battery
- Current consumption in sleep mode is 3 µA
- Current consumption in active mode is up to 30 mA
- Operating temperature range –20 to +55 °C
- Overall dimensions 90 x 28 x 28 mm
Equipment:

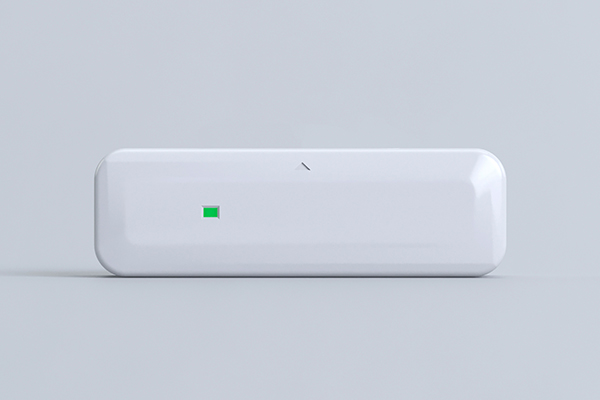

- Livi TS Temperature Sensor
- CR123A Lithium battery (3V);
- Mounting Kit
- Rules and Conditions for the safe operation of Livi radio devices
