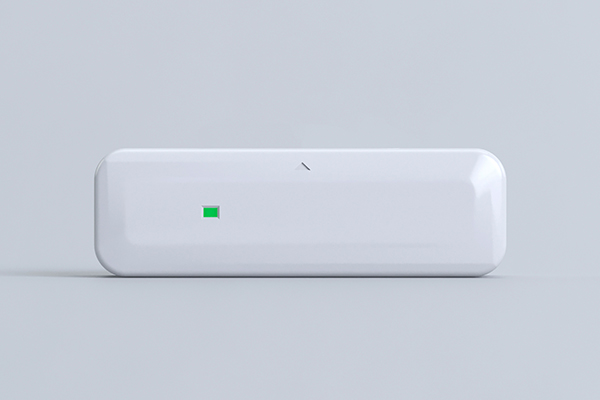

The sensor allows you to connect third-party wired devices with a dry contact output to the Livicom system. Two security, fire, emergency or technological alarm devices can be connected to one Livi US.
Attention! The sensor works when connected via the Livi Smart Hub 4G.
Features:
- Connecting sensors from other manufacturers
Using Livi US, you can connect any two sensors from third-party manufacturers with an alarm output of the "dry contact" type. For example, household gas leak detectors, threshold pressure sensors, and carbon monoxide sensors. - Special settings for each Livi US input
In the Livicom mobile application, you can specify the type of Livi US input depending on the connected device: security, fire, emergency or technological. This will allow you to change the logic of how Livi US works. - Determination of the normal state of connected sensors
You can connect a third-party sensor with both a normally closed and a normally open contact, thanks to the inversion of Livi US.
Features:
- Operating range 868 MHz
- Number of dry contact type inputs 2
- The length of wires for connecting devices is not more than 3 m
- Power supply (3V) lithium battery CR123A;
- Current consumption in sleep mode is 3 µA
- Current consumption in active mode is up to 30 mA
- Operating temperature range –20 to +55 °C
- Overall dimensions 90 x 28 x 28 mm
Equipment:
- Universal Sensor Livi US
- CR123A lithium battery (3V)
- Mounting Kit
- Rules and Conditions for the safe operation of Livi radio devices
